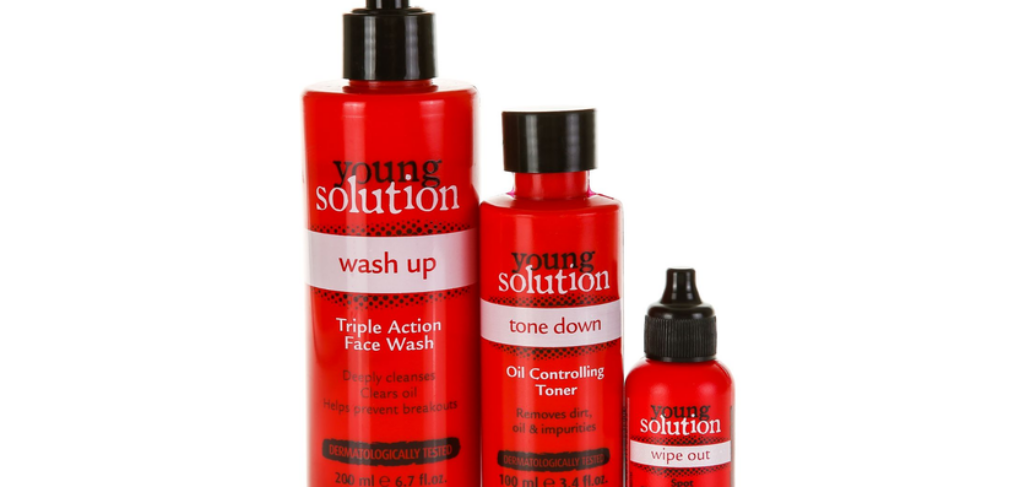

Why Packaging Must Be Compatible With Its Contents

In rigid plastic packaging, success is often measured by what never happens. Products do not leak. Containers do not crack. Materials do not degrade. Consumers never see the engineering decisions that prevent these failures, yet those decisions are among the most important in the entire packaging design process.

When packaging is used for chemical products, compatibility becomes a critical design requirement. A container may appear structurally sound when first manufactured, but if the material is not compatible with the product it contains, degradation can begin almost immediately. Over time, this may result in stress cracking, deformation, contamination, discolouration, permeability issues, or complete packaging failure.

At t3 Plastic Packaging, chemical compatibility is considered from the earliest stages of product development. Material selection, wall thickness, closure systems, and container geometry are all evaluated to ensure the packaging can safely contain its contents throughout storage, transport, and use.

Chemical compatibility is therefore not simply about selecting a plastic material. It is about designing an entire packaging system that remains stable and reliable over the product’s intended lifespan.

When Packaging Must Protect Against the Product It Holds

Many packaging challenges involve protecting the product from the outside environment. Chemical packaging introduces a different challenge: protecting the packaging from the product itself.

Certain chemicals can interact with plastic materials in ways that gradually weaken structural integrity. Depending on the formulation, exposure may cause:

• Swelling of polymer structures
• Softening of container walls
• Stress cracking
• Surface degradation
• Changes in dimensional stability
• Reduced closure performance

The severity of these effects depends on both the chemical formulation and the packaging material selected.

A container that performs perfectly with one product may perform poorly with another. This is why compatibility testing forms such an important part of packaging development.

Material Selection for Chemical Resistance

Different polymers possess different chemical resistance characteristics. Selecting the correct material is one of the most important decisions in chemical packaging design.

HDPE and Chemical Durability

High-Density Polyethylene (HDPE) is widely used because of its excellent resistance to many industrial and household chemicals. Its molecular structure provides strong resistance to a wide range of acids, alkalis, and cleaning formulations.

Benefits include:

• High impact resistance
• Excellent chemical stability
• Strong environmental stress crack resistance
• Cost-effective manufacturing

These properties make HDPE one of the most versatile materials for chemical packaging applications.

PP and Elevated Temperature Performance

Polypropylene (PP) offers advantages when products may be exposed to elevated temperatures. It maintains rigidity across a broader temperature range and provides resistance to many chemical formulations.

PP is often selected where dimensional stability and heat resistance are important performance requirements.

PET and Specialised Applications

PET offers excellent clarity and dimensional stability, although compatibility must be carefully assessed depending on the chemical formulation involved.

Where visibility of the product is important, PET may provide advantages, provided the formulation is compatible with the material.

Understanding Chemical Interaction Risks

Chemical compatibility is influenced by multiple variables beyond basic material selection.

Factors include:

• Product concentration
• Exposure duration
• Temperature conditions
• Internal pressure
• Product pH
• Storage environment

Even minor formulation changes can affect packaging performance.

For this reason, compatibility evaluation must consider real-world operating conditions rather than laboratory assumptions alone.

A packaging system that performs well in controlled conditions may behave differently when subjected to transport vibration, temperature cycling, and long-term storage.

The Role of Container Geometry

Geometry plays an important role in chemical packaging performance.

Containers holding aggressive products may experience internal stress as a result of chemical exposure. Poorly designed geometry can concentrate these stresses in specific areas, increasing the likelihood of failure.

To mitigate this risk, t3 evaluates:

• Corner radii
• Shoulder transitions
• Base design
• Wall thickness distribution
• Reinforcement structures

By distributing loads more evenly, containers become more resistant to chemical-induced degradation.

Closure Systems and Product Safety

The closure system is often the most vulnerable component in chemical packaging.

Closures must maintain sealing performance while resisting:

• Chemical exposure
• Pressure fluctuations
• Temperature changes
• Repeated opening and closing

Material compatibility between the closure and the product is just as important as compatibility between the container and the product.

A chemically resistant bottle paired with an incompatible closure can still result in system failure.

This is why t3 evaluates packaging as a complete system rather than individual components.

Testing Protocols and Validation

Chemical compatibility cannot be determined through theory alone. Real-world testing is essential.

Testing typically evaluates:

• Stress cracking resistance
• Dimensional stability
• Weight change
• Closure performance
• Long-term structural integrity

Containers may be subjected to accelerated ageing conditions to simulate extended storage periods.

This testing allows potential issues to be identified before packaging enters commercial production.

Compliance and Industry Requirements

Many chemical products are subject to industry regulations governing packaging safety and performance.

Compliance requirements may involve:

• Material traceability
• Product containment standards
• Transport regulations
• Safety labelling requirements

Packaging must not only perform mechanically but also meet applicable regulatory obligations.

By incorporating compliance considerations into the design process, t3 helps reduce risk and improve product safety.

Why Chemical Compatibility Protects More Than Products

When packaging fails, the consequences extend beyond product loss.

Potential outcomes include:

• Environmental contamination
• Safety hazards
• Production downtime
• Product recalls
• Brand reputation damage

Proper compatibility assessment protects not only the product but also the business behind it.

For manufacturers operating in industrial markets, packaging reliability is an essential part of risk management.

Engineering Confidence Into Every Container

Chemical compatibility is one of the most demanding aspects of packaging design. Success requires a detailed understanding of material behaviour, chemical interaction, manufacturing precision, and long-term performance.

At t3 Plastic Packaging, compatibility is treated as a fundamental engineering requirement rather than a secondary consideration. Through material expertise, testing, and precision manufacturing, t3 develops packaging systems designed to safely contain demanding products throughout their lifecycle.

Reliable packaging begins with understanding what the product will ask of the container. The better that understanding, the better the packaging performs.

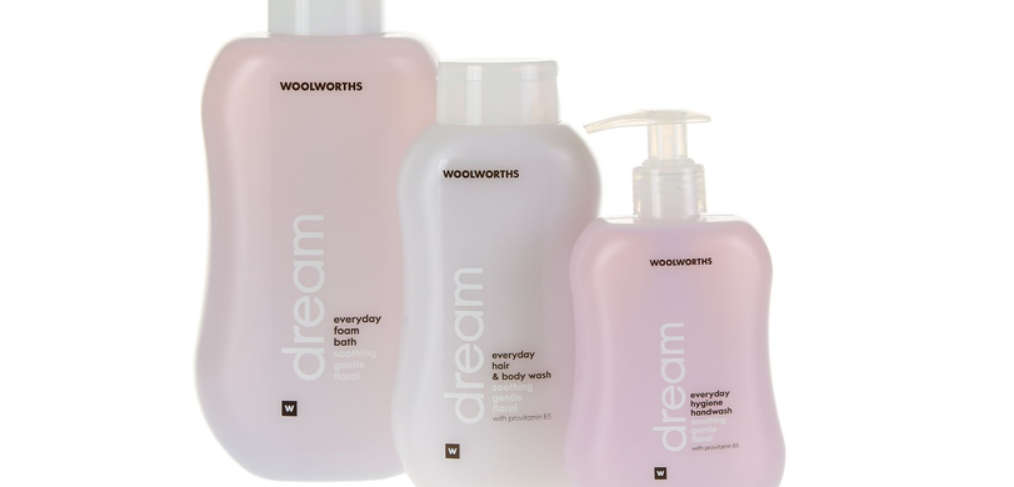

Why Packaging Performance Changes Over Time

Most packaging is evaluated based on how it performs when it leaves the production line. Dimensions are measured, closures are tested, and appearance is inspected. However, the true test of rigid plastic packaging often begins after manufacturing is complete.

Containers may spend weeks, months, or even years in warehouses, distribution centres, retail environments, and consumer homes. During this time, packaging is exposed to continuous mechanical loads, environmental conditions, and repeated handling. These influences gradually affect material behaviour, sometimes in ways that are not immediately visible.

At t3 Plastic Packaging, durability is viewed as a lifecycle consideration rather than a production milestone. A container that performs perfectly on day one but degrades over time cannot be considered successful packaging. True performance means maintaining structural integrity, dimensional stability, and functionality throughout the product’s intended lifespan.

Understanding how creep, fatigue, and ageing affect plastic materials allows packaging engineers to design containers that remain reliable long after they have been manufactured.

The Difference Between Immediate Strength and Long-Term Durability

Many materials appear strong when tested under short-term conditions. However, long-term durability involves far more than initial strength.

Plastic containers experience continuous stress throughout their service life. Even when loads appear relatively small, the cumulative effect of these stresses can alter material behaviour over time.

Examples include:

• Stacked containers in warehouses
• Filled bottles stored for extended periods
• Repeated opening and closing cycles
• Exposure to fluctuating temperatures
• Transport vibration over long distances

A container may pass all initial quality inspections while still being vulnerable to long-term performance issues if these factors are not considered during design.

This is why durability engineering focuses on predicting how materials will behave over months and years rather than hours and days.

Understanding Creep in Plastic Packaging

Creep is one of the most important long-term behaviours affecting rigid plastic packaging.

Creep occurs when a material deforms gradually under a constant load. Unlike immediate deformation, creep develops slowly over time.

Consider a filled container stacked beneath several other containers in a warehouse. The load may remain constant, but the plastic material continues to respond to that load. Over time, small dimensional changes may occur.

These changes can affect:

• Container shape
• Stackability
• Closure performance
• Dimensional accuracy
• Structural integrity

The rate of creep depends on several factors:

• Material type
• Temperature
• Load magnitude
• Exposure duration
• Container geometry

Some materials resist creep more effectively than others, making material selection a critical aspect of durability engineering.

How Different Polymers Respond to Long-Term Loads

Not all plastics behave the same way under prolonged stress.

PET

Polyethylene Terephthalate (PET) generally offers excellent dimensional stability and creep resistance. Its molecular structure helps maintain shape under sustained loads, making it suitable for many rigid packaging applications.

HDPE

High-Density Polyethylene (HDPE) provides excellent impact resistance and flexibility.

PP

Polypropylene (PP) offers good rigidity and thermal performance while providing predictable behaviour under many loading conditions.

Selecting the correct material requires understanding not only immediate performance requirements but also long-term mechanical behaviour.

What Fatigue Means in Packaging Design

While creep occurs under constant loading, fatigue results from repeated loading and unloading cycles.

Fatigue develops when materials experience recurring stress over time. Even if each individual load is relatively small, repeated cycles can eventually cause structural weakening.

In packaging applications, fatigue may result from:

• Repeated opening and closing of closures
• Continuous transport vibration
• Automated handling systems
• Repetitive stacking and unstacking
• Consumer interaction

Unlike sudden failures, fatigue often develops gradually. Small microscopic changes accumulate until performance is affected.

This makes fatigue one of the most challenging durability factors to predict without proper engineering analysis.

The Impact of Vibration and Distribution Networks

Modern supply chains expose packaging to significant vibration loads.

Products may travel through:

• Manufacturing facilities
• Distribution centres
• Road transport
• Warehousing systems
• Retail environments

Each stage introduces repetitive stresses that contribute to fatigue.

While individual vibration events may seem insignificant, thousands of cycles can accumulate over time.

t3 considers distribution-related stresses during packaging design to ensure containers maintain performance throughout the logistics chain.

Ageing: The Influence of Time and Environment

Ageing refers to the gradual changes that occur in plastic materials as they are exposed to environmental conditions over time.

Several factors contribute to ageing:

• UV exposure
• Temperature fluctuations
• Oxidation
• Humidity
• Chemical exposure

These influences can affect:

• Colour stability
• Surface appearance
• Mechanical strength
• Flexibility
• Impact resistance

The rate of ageing varies depending on material type and operating environment.

Understanding these variables allows engineers to anticipate long-term behaviour and select materials accordingly.

Environmental Stress and Material Degradation

Packaging rarely operates under ideal conditions.

Containers may experience:

• Hot warehouse temperatures
• Direct sunlight
• High humidity
• Rapid temperature cycling

These conditions accelerate ageing and may amplify creep or fatigue effects.

For example, elevated temperatures can increase creep rates by making polymer chains more mobile. Similarly, UV exposure may gradually reduce material toughness.

By understanding environmental stress factors, t3 develops packaging solutions capable of maintaining performance under realistic operating conditions.

Engineering Against Long-Term Deformation

Preventing long-term deformation requires more than selecting the correct material. It requires thoughtful engineering throughout the design process.

Key strategies include:

Optimised Wall Thickness

Uniform wall thickness helps distribute loads more evenly and reduces localised stress concentrations.

Structural Reinforcement

Ribs, support features, and geometric reinforcements improve stiffness without unnecessarily increasing material usage.

Load Path Management

Engineering how forces move through a container improves resistance to creep and fatigue.

Material Selection

Choosing materials based on long-term performance characteristics rather than initial cost alone improves lifecycle reliability.

Together, these strategies help maintain dimensional stability over extended periods.

Validation Testing for Durability

Durability cannot be assumed. It must be verified through testing.

Common validation methods include:

• Compression testing
• Accelerated ageing studies
• Fatigue simulation
• Environmental conditioning
• Long-term load testing
• Leak Testing
• Drop Testing

These evaluations help identify potential performance risks before products enter commercial production.

Testing also provides confidence that packaging will perform consistently throughout its intended lifecycle.

Why Durability Matters for Brand Protection

When packaging fails after months of use, the consequences can be significant.

Potential outcomes include:

• Product damage
• Leakage
• Customer complaints
• Increased returns
• Brand reputation harm

Consumers rarely distinguish between product failure and packaging failure. To them, both reflect on the brand.

Long-term durability therefore represents not only an engineering objective but also a business requirement.

Packaging that performs reliably over time helps protect products, reduce risk, and reinforce customer confidence.

Designing for Lifespan Rather Than Launch

Many packaging projects focus heavily on initial production success. While manufacturing efficiency is important, long-term durability determines whether the packaging continues to perform throughout its service life.

At t3 Plastic Packaging, durability considerations begin during the earliest design stages. Material behaviour, stress distribution, environmental exposure, and lifecycle demands are all evaluated before production begins.

This approach ensures that packaging is designed not simply to be manufactured, but to endure.

By understanding creep, fatigue, and ageing, t3 develops rigid plastic packaging solutions that maintain performance long after they leave the factory floor.

Reliable packaging is not defined by how it performs today. It is defined by how it performs tomorrow, next month, and years into the future.

Why Tooling Strategy Matters in Packaging Manufacturing

In rigid plastic packaging, tooling decisions influence far more than the appearance of a container. They affect scalability, production efficiency, long-term manufacturing costs, supply chain flexibility, and the ability to adapt to future market demands.

At t3 Plastic Packaging, tooling strategy is approached as a long-term operational decision rather than a short-term production requirement. Whether a client chooses standardised packaging components or fully custom tooling, the decision must align with growth expectations, production volumes, brand positioning, and manufacturing practicality.

For many businesses, the challenge lies in balancing flexibility with efficiency. Standardised packaging offers speed and cost advantages, while custom tooling creates opportunities for differentiation and unique functionality. Neither approach is universally correct. The most effective solution depends on the broader objectives of the packaging portfolio.

When One Size Does, and Doesn’t, Fit All

Standardised packaging components are widely used because they simplify manufacturing and reduce complexity. Common bottle neck finishes, standard closure systems, and shared component dimensions allow businesses to scale production efficiently without redesigning entire packaging systems.

Standardisation provides several advantages:

• Faster production setup
• Lower tooling investment
• Easier sourcing of compatible closures
• Simplified inventory management
• Reduced manufacturing risk

For high-volume production environments, these efficiencies can significantly reduce operational costs.

However, standardisation also introduces limitations. Products may lose differentiation on crowded shelves, and certain functional requirements may not be achievable using standard formats. In highly competitive markets, packaging that looks interchangeable can weaken brand recognition.

This is where custom tooling becomes valuable.

What Custom Tooling Actually Delivers

Custom tooling allows packaging to be designed specifically around a product, brand identity, or operational requirement. Instead of adapting the product to fit existing packaging, the packaging is engineered around the product itself.

Custom tooling may involve:

• Unique bottle geometry
• Bespoke neck finishes
• Custom dispensing systems
• Specialised ergonomic features
• Distinctive structural reinforcement

These features help brands create packaging that performs differently and stands out visually.

At t3, custom tooling projects are approached with careful consideration of manufacturability and long-term scalability. A visually unique container is only valuable if it can be produced consistently and efficiently.

Balancing Flexibility with Manufacturing Efficiency

One of the biggest challenges in custom tooling is balancing design freedom with production efficiency.

Highly customised packaging often introduces:

• Longer tooling development timelines
• Increased engineering complexity
• More demanding quality control requirements
• Greater sensitivity to dimensional variation

This does not make custom tooling impractical. It simply means the tooling strategy must account for operational realities from the beginning.

At t3, design decisions are evaluated not only for aesthetics but also for:

• Material flow behaviour
• Cooling efficiency
• Cycle times
• Stackability
• Filling-line compatibility

This ensures custom packaging remains commercially viable throughout production.

The Cost Implications of Tooling Decisions

Tooling investment is one of the most important considerations when developing rigid packaging systems. Standard tooling generally reduces upfront expenditure because existing moulds and compatible components are already available.

Custom tooling, by comparison, requires:

• Dedicated mould design
• Precision machining
• Prototype validation
• Additional engineering development

The upfront investment is therefore higher. However, the long-term value may justify the cost if the packaging delivers improved functionality, stronger brand recognition, or operational advantages.

The real question is not whether custom tooling costs more, but whether it creates measurable long-term value.

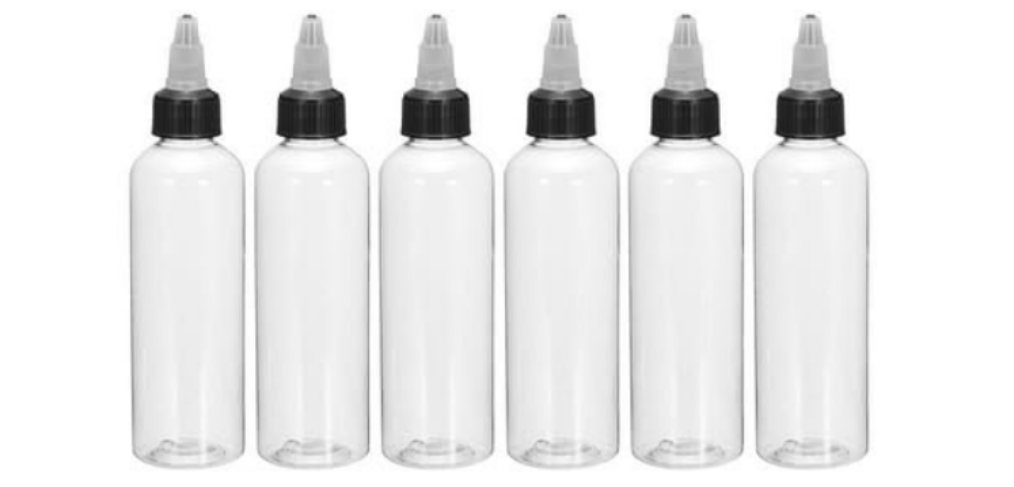

Scalability and Portfolio Planning

Packaging portfolios evolve over time. A business may launch with a limited product range but later expand into multiple sizes, formulations, or distribution markets.

Scalable packaging design considers this future growth from the beginning.

Standardised systems often support scalability through shared components. Closures, neck finishes, and production tooling can be reused across multiple product lines, reducing operational complexity.

Custom systems can also scale effectively when designed strategically. Modular tooling concepts, shared neck finishes, and standardised closure interfaces can allow customised packaging to maintain compatibility across product families.

At t3, scalability planning forms part of the tooling decision process to ensure packaging systems remain commercially sustainable as businesses grow.

Operational Performance Beyond Shelf Appearance

Packaging performance extends beyond aesthetics. A container must also function efficiently within manufacturing and logistics environments.

Tooling decisions affect:

• Filling-line speed
• Closure application consistency
• Material usage efficiency
• Stacking stability
• Transport durability

Poor tooling strategy can create operational inefficiencies that increase costs over time.

For this reason, t3 evaluates tooling decisions based not only on visual differentiation but also on real-world production performance.

The Role of Standardisation in Manufacturing Stability

Standardisation provides stability within production systems. Consistent neck finishes, closure compatibility, and tooling geometry simplify manufacturing operations and reduce variability.

This consistency improves:

• Process repeatability
• Quality control reliability
• Inventory planning
• Supply chain management

In high-volume manufacturing environments, stability is often more valuable than excessive customisation.

However, standardisation should not eliminate innovation. The objective is to identify where consistency creates value and where differentiation delivers strategic advantage.

Choosing the Right Tooling Strategy

There is no universal answer to the standardisation versus custom tooling debate. The right strategy depends on:

• Production scale
• Brand positioning
• Budget allocation
• Distribution requirements
• Product differentiation goals

At t3 Plastic Packaging, tooling decisions are guided by long-term performance rather than short-term trends. By balancing operational efficiency with packaging innovation, t3 helps businesses develop scalable packaging systems that remain commercially effective over time.

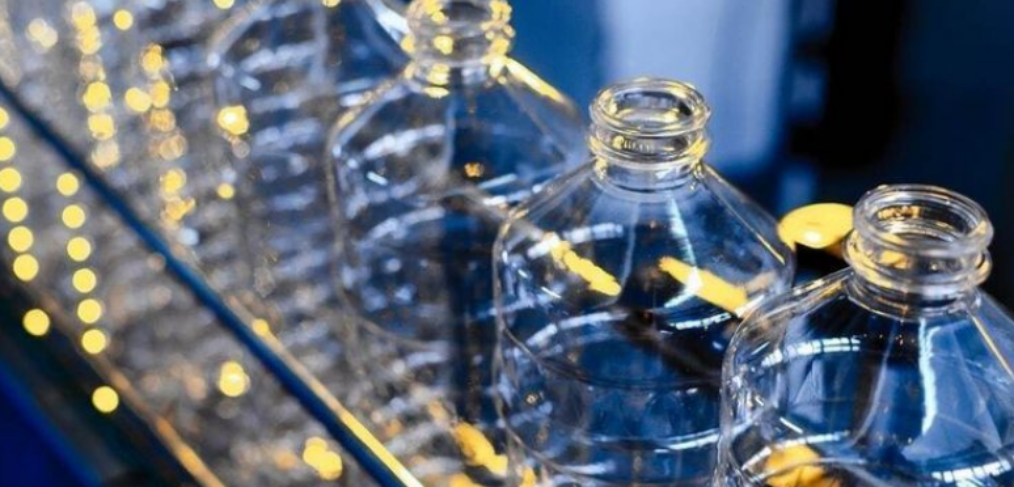

Why Packaging Performance Starts on the Filling Line

Rigid plastic packaging is often evaluated based on shelf appearance, durability, or closure performance. However, one of the most important stages in the lifecycle of a container occurs long before the product reaches consumers. It happens on the filling line.

At t3 Plastic Packaging, bottle geometry is engineered not only for visual presentation but also for operational efficiency. Filling speed, liquid viscosity, and container shape interact continuously during production, and even minor design variations can significantly affect line performance.

In high-volume manufacturing environments, packaging that fills efficiently reduces downtime, improves consistency, and increases throughput. Packaging that performs poorly can slow production, create spillage, and increase rejection rates.

Why Bottles Affect More Than Shelf Appeal

Bottle geometry directly influences how products move through automated filling systems. Features such as shoulder angle, neck diameter, internal volume distribution, and base stability all affect filling performance.

Well-designed geometry supports:

• Stable positioning during filling
• Consistent liquid flow
• Reduced foaming and turbulence
• Accurate fill levels
• Efficient closure application

Poor geometry can introduce instability that affects the entire production line.

Understanding Filling Speed

Filling speed refers to how quickly product can be dispensed into containers while maintaining accuracy and consistency.

Several factors influence filling speed:

• Product viscosity
• Nozzle design
• Container opening diameter
• Air displacement within the bottle
• Filling system pressure

Increasing speed without controlling these variables can lead to splashing, inconsistent fills, or product waste.

At t3, bottle geometry is designed to support stable filling conditions even at high production rates.

How Viscosity Changes Filling Behaviour

Different products behave differently during filling. Thin liquids such as water move quickly and generate minimal resistance, while thicker products flow more slowly and behave unpredictably under pressure.

High-viscosity products may:

• Trap air within the container
• Create uneven filling patterns
• Increase turbulence near the neck finish
• Require slower dispensing speeds

Bottle geometry must therefore be matched to the viscosity characteristics of the product being filled.

Designing for Speed Without Sacrificing Accuracy

Production speed is important, but speed without control creates waste.

t3 designs bottle geometry to optimise both speed and accuracy by considering:

• Neck diameter and entry flow
• Shoulder transitions
• Internal flow paths
• Base stability during conveyor movement

Smooth internal geometry reduces turbulence and improves liquid settling behaviour, allowing filling systems to operate efficiently without sacrificing precision.

The Relationship Between Geometry and Air Displacement

As liquid enters a container, air must escape efficiently. Poor air displacement creates pressure fluctuations that interfere with filling consistency.

Bottle geometry affects how air moves through the container during filling. Narrow neck finishes or abrupt shoulder transitions may trap air and slow production.

By engineering smoother flow paths and balanced internal volume distribution, t3 improves filling efficiency and reduces instability.

Line Stability and Container Handling

Bottle geometry also affects how containers behave while moving through automated production systems.

Containers must remain stable during:

• Conveyor transport
• Filling
• Capping
• Labelling

Base geometry, weight distribution, and structural rigidity all contribute to line stability. Poorly balanced containers may tip, rotate incorrectly, or jam production equipment.

t3 designs containers to maintain consistent movement throughout high-speed production environments.

Reducing Production Errors Through Design

Packaging design can significantly reduce operational errors when engineered correctly.

Optimised bottle geometry helps minimise:

• Overfilling and underfilling
• Product spillage
• Conveyor instability
• Closure misalignment
• Label application inconsistency

Reducing these issues improves overall manufacturing efficiency and reduces operational waste.

Engineering Packaging for Operational Performance

Rigid packaging must function as part of a complete manufacturing system. Bottle geometry cannot be separated from filling speed, product viscosity, or production-line performance.

By engineering containers with operational efficiency in mind, t3 Plastic Packaging helps manufacturers achieve faster, more stable, and more reliable production processes.

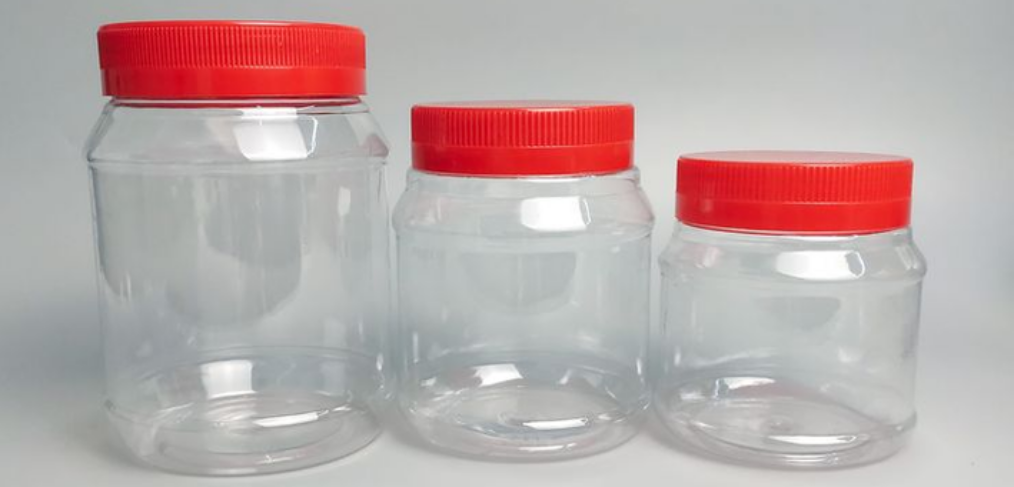

Why Plastic Never Behaves the Same Twice

Plastic is not a static material. During injection moulding, it flows, cools, contracts, and stabilises in ways that are influenced by temperature, pressure, and geometry. This behaviour introduces variability, particularly in the form of shrinkage and warpage.

At t3 Plastic Packaging, managing this variability is a core part of engineering. Shrinkage and warpage are not defects to be corrected after production, they are factors to be anticipated and controlled during design and tooling.

Understanding Shrinkage in Plastic Materials

Shrinkage occurs as molten plastic cools and solidifies. As temperature decreases, the material contracts, resulting in dimensional changes between the mould cavity and the final product.

Shrinkage levels vary depending on:

• Polymer type
• Wall thickness
• Cooling rate
• Mould temperature

Each material behaves differently. PET, HDPE, and PP all have unique shrinkage characteristics that must be considered during design.

Warpage: When Geometry Becomes Unstable

Warpage occurs when shrinkage is uneven across the part. This causes distortion, bending, or twisting of the final product.

Common causes include:

• Uneven wall thickness
• Non-uniform cooling
• Residual internal stress
• Asymmetrical geometry

Warpage is particularly critical in rigid packaging, where dimensional accuracy is required for closure compatibility and stacking stability.

How Cooling and Geometry Influence Dimensional Accuracy

Cooling is one of the most influential factors in moulding performance. If cooling is uneven, different areas of the part contract at different rates, leading to distortion.

To control this, t3 engineers:

• Balanced cooling channels in mould design
• Uniform wall thickness wherever possible
• Gradual transitions between thick and thin sections

These strategies reduce internal stress and improve dimensional stability.

Material Selection and Behaviour

Material selection plays a major role in controlling shrinkage and warpage. Each polymer has specific thermal and mechanical properties that influence how it behaves during moulding.

For example:

• PET provides dimensional stability under load
• HDPE offers flexibility but higher shrinkage
• PP balances rigidity and thermal resistance

Selecting the correct material ensures predictable performance.

Tooling Precision and Process Control

Tooling must be designed to account for shrinkage. Mould cavities are intentionally sized larger than the final product to compensate for expected contraction.

Process control also plays a critical role. Injection pressure, cooling time, and mould temperature must remain consistent to ensure repeatable results.

Quality Control and Continuous Monitoring

Maintaining dimensional stability requires continuous monitoring during production. t3 uses inspection and measurement systems to verify that each part meets specification.

Any deviation is identified early, allowing adjustments to be made before large quantities are produced.

Engineering Stability Into Every Product

Shrinkage and warpage are inherent to injection moulding, but they can be controlled through careful design, material selection, and process management.

By understanding how plastic behaves and engineering solutions accordingly, t3 Plastic Packaging ensures that every product maintains dimensional accuracy and performs reliably.

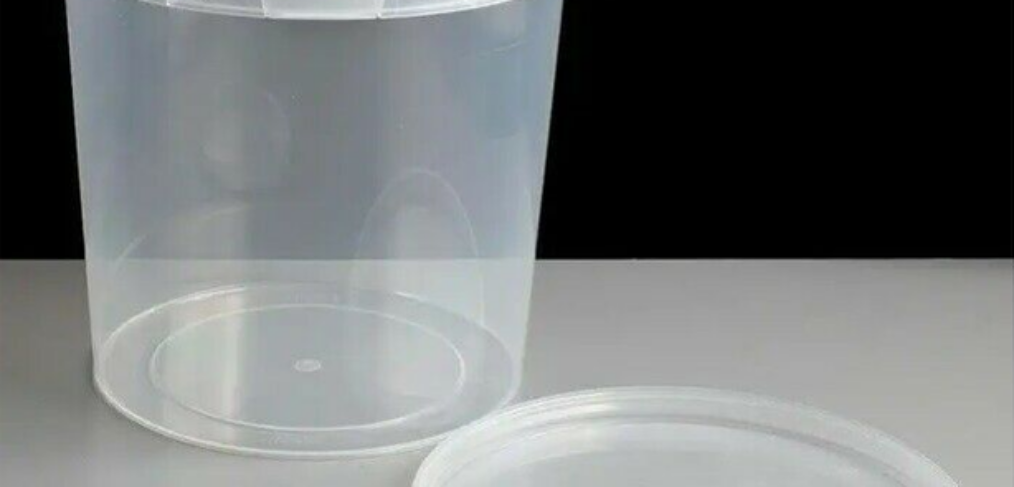

CAD as the Starting Point of Precision

Every rigid plastic container begins long before material enters a mould. It starts as a digital model, defined in exact dimensions and engineered with intent. At t3 Plastic Packaging, CAD (Computer-Aided Design) is not simply a drawing tool, it is the foundation of accuracy, consistency, and performance.

CAD allows engineers to define every surface, radius, wall thickness, and interface before a physical component exists. This level of control ensures that design decisions are deliberate, measurable, and repeatable. In rigid packaging, where tolerances are tight and performance expectations are high, this precision is critical.

Digital design also allows early identification of potential issues. Instead of reacting to problems after production begins, engineers can address them at the design stage, saving time, cost, and material waste.

Where Design Decisions Become Manufacturing Reality

A CAD model is only valuable if it can be translated into a manufacturable product. The transition from digital design to physical moulding is where engineering discipline becomes essential.

Every feature in a CAD model must consider how plastic behaves during injection moulding. This includes:

• Material flow within the mould
• Cooling rates and thermal contraction
• Pressure distribution during injection
• Final part ejection from the tool

Design elements such as wall thickness, draft angles, and ribbing must be optimised for manufacturability. A design that looks correct digitally may fail in production if these factors are not considered.

At t3, design and manufacturing teams work together to ensure that CAD models are not only accurate but also production-ready.

Why Simulation Prevents Failure Before Production

Simulation is one of the most powerful tools in modern packaging design. It allows engineers to test performance digitally before committing to tooling.

Using simulation software, t3 can evaluate:

• Material flow patterns inside the mould
• Areas prone to air traps or weld lines
• Potential warpage or shrinkage behaviour
• Stress concentration zones

By identifying these issues early, adjustments can be made to geometry, wall thickness, or gate positioning before manufacturing begins.

This approach reduces trial-and-error during production and ensures that the final product performs as expected from the first moulding cycle.

Tool Design: Translating Digital Models Into Steel

Once a CAD model is validated, it must be converted into a physical mould. This step requires extreme precision, as the mould defines the final product’s dimensions and surface finish.

Tooling design includes:

• Cavity layout and number of impressions
• Gate design and material flow control
• Cooling channel placement
• Venting to prevent air entrapment

Every detail in the mould must reflect the CAD model accurately while accommodating material behaviour during injection and cooling.

High-quality tooling ensures consistency across large production volumes, where even minor deviations can lead to defects.

Tolerance Control and Dimensional Accuracy

Rigid packaging components must meet strict dimensional tolerances, particularly at critical interfaces such as neck finishes and closures.

CAD enables engineers to define these tolerances precisely. However, maintaining them in production requires:

• Consistent material quality
• Controlled processing parameters
• Precision-machined tooling

t3 uses measurement systems and process control to ensure that each moulded part remains within specification. This level of control is essential for maintaining compatibility with closures and production equipment.

Prototyping and Validation

Before full-scale production begins, prototypes are often created to validate design performance. These prototypes allow for:

• Physical evaluation of ergonomics and usability
• Fit testing with closures or other components
• Verification of structural integrity

Prototyping bridges the gap between digital design and real-world application, ensuring that the final product performs as intended.

Production Accuracy and Repeatability

Once production begins, consistency becomes the primary objective. Every unit must match the original design specification.

This requires:

• Stable injection moulding conditions
• Continuous process monitoring
• Quality control at each stage

At t3, production is controlled to ensure that every container produced reflects the same precision defined in the original CAD model.

From Concept to Consistency

The journey from CAD to cavity is not just a design process, it is a system of control. Each stage, from digital modelling to final production, contributes to the performance of the final product.

By combining digital precision with manufacturing expertise, t3 Plastic Packaging ensures that every design becomes a reliable, repeatable, and high-performing packaging solution.

Why Thickness Is a Design Decision, Not a Guess

Wall thickness is one of the most misunderstood variables in rigid plastic packaging. Thicker walls are often assumed to be stronger, but this assumption leads to inefficient, heavy, and poorly performing packaging. At t3 Plastic Packaging, wall thickness is treated as an engineered outcome, not an arbitrary choice.

Every container must balance strength, weight, manufacturability, and cost. Achieving this balance requires an understanding of material behaviour, load paths, and long-term stress effects.

Load Distribution and Structural Integrity

Packaging does not fail because it is thin; it fails because stress is poorly distributed. Vertical stacking loads, internal pressure, and impact forces must be channelled through the container in predictable ways.

t3 engineers use:

• Structural ribbing to redirect load paths
• Controlled panel geometry to manage deformation
• Reinforced base designs to prevent collapse

These features allow containers to maintain strength even with reduced wall thickness.

Lightweighting Without Compromise

Lightweighting is not about removing material indiscriminately. It is about removing material where it is not structurally required. t3 approaches lightweighting through:

• Material flow analysis
• Cooling uniformity optimisation
• Creep and fatigue evaluation

This ensures reduced material use without compromising durability, sealing integrity, or shelf stability.

Material Behaviour Under Stress

Different polymers behave differently under load and over time:

• PET resists long-term creep and maintains shape under stacking loads
• HDPE absorbs impact energy and recovers from deformation
• PP provides thermal stability and rigidity in elevated temperature environments

Wall thickness is tuned to each material’s mechanical profile, ensuring predictable performance throughout the product lifecycle.

Manufacturing Consistency and Dimensional Control

Uniform wall thickness improves cooling efficiency, reduces internal stress, and enhances dimensional repeatability. This consistency is critical for:

• Closure compatibility
• Label application
• High-speed filling and handling

Inconsistent wall thickness leads to warpage, uneven shrinkage, and downstream production issues.

Transport, Storage, and Long-Term Use

Rigid packaging must withstand real-world conditions, including:

• Long-term stacking in warehouses
• Vibration during transport
• Temperature variation across climates

t3 validates designs through compression testing, drop testing, and long-duration load simulations to ensure containers perform reliably from factory to consumer.

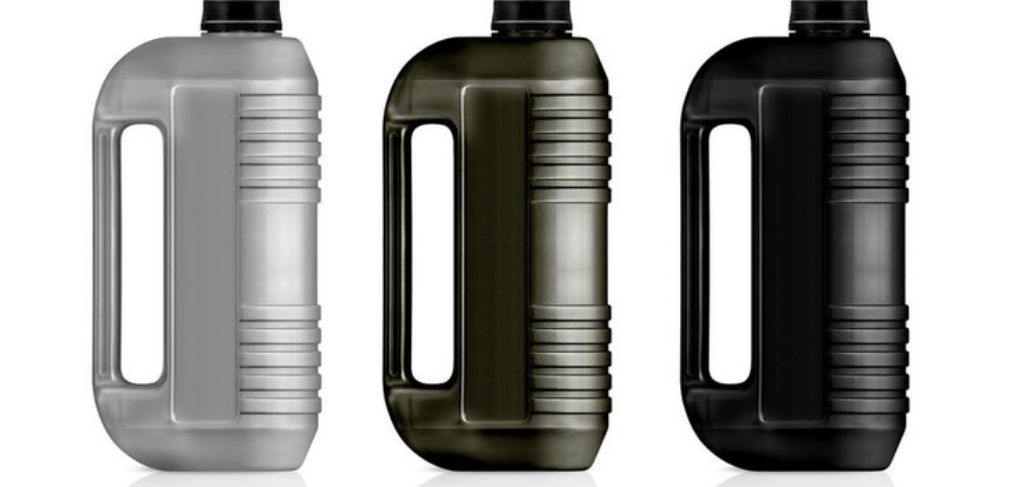

Why Overbuilding Is Not Engineering

Overbuilt packaging increases cost, material usage, and environmental impact without improving performance. True engineering delivers strength through geometry, not excess material. By optimising wall thickness and structure, t3 delivers packaging that performs efficiently and responsibly.

t3 Plastic Packaging, strength engineered, not overbuilt.

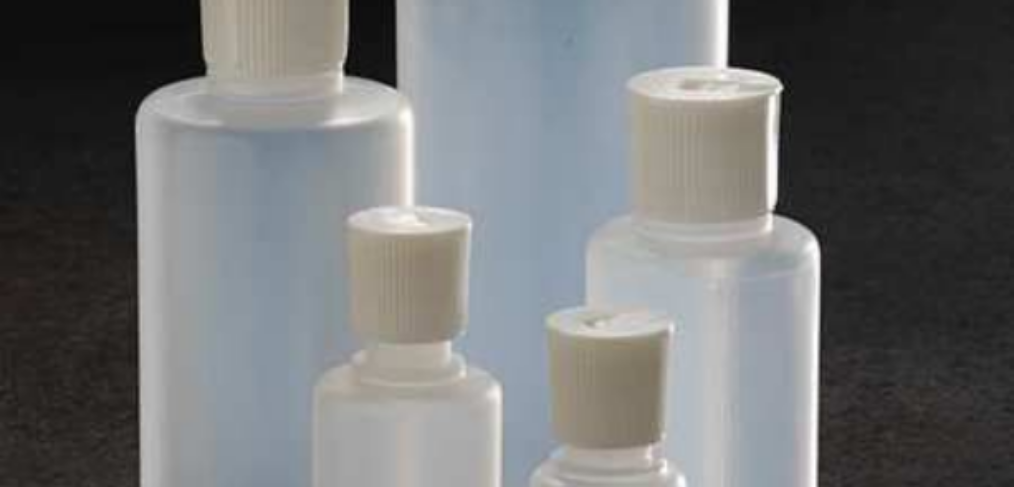

Why Closures Are Not Accessories

In rigid plastic packaging, the closure is often underestimated. It is seen as a simple cap rather than a precision-engineered component. In reality, the closure is one of the most technically complex elements in the entire packaging system. A bottle may be perfectly moulded, dimensionally accurate, and visually flawless, but if the closure system fails, the entire package fails.

At t3 Plastic Packaging, closures are engineered as integrated systems. They are designed to work in harmony with neck finishes, materials, filling equipment, and real-world handling conditions. Performance is not defined by appearance, but by how consistently a closure seals, opens, reseals, and protects the product throughout its lifecycle.

Closures directly influence leak prevention, shelf life, consumer confidence, transport safety, and production efficiency. Their design must account for thousands of opening cycles, temperature changes, vibration during transport, and the variability of human use.

The Closure as a Mechanical System

A closure is not a static component. It is a mechanical interface between two moulded parts that must perform repeatedly under controlled and uncontrolled conditions. This interface includes:

• The bottle neck finish
• The closure thread profile
• The sealing surface
• The liner or sealing geometry
• The material behaviour of both components

Each element affects the others. A change in neck diameter, wall stiffness, or material shrinkage can alter how a closure performs. t3 engineers closures as systems, not standalone parts, ensuring predictable interaction between every interface.

Thread Design and Mechanical Tolerance

Thread design is one of the most critical aspects of closure performance. The engagement between closure and neck must be precise enough to seal reliably, yet forgiving enough to accommodate manufacturing tolerances and high-speed application.

Key considerations include:

• Thread pitch and lead angle
• Thread depth and flank geometry
• Engagement length
• Start position and lead-in chamfers

Poorly designed threads lead to cross-threading, inconsistent torque application, uneven sealing pressure, and long-term wear. t3 designs thread systems to distribute load evenly across the sealing surface, ensuring repeatable engagement across millions of cycles.

Micron-level tolerances are maintained to ensure dimensional repeatability across production runs. This consistency is critical for automated capping equipment, where even minor variation can result in misapplied closures or rejected units.

Sealing Systems and Leak Prevention

Sealing does not rely on force alone. It relies on controlled compression between mating surfaces. t3 selects sealing systems based on product type, internal pressure, material behaviour, and expected storage conditions.

Common sealing approaches include:

• Flat land seals for rigid, dimensionally stable containers
• Plug seals for additional internal sealing security
• Compression liners for uneven or flexible sealing surfaces
• Induction-compatible sealing interfaces where required

Each sealing method is tested under real-world conditions, including inversion, vibration, pressure variation, and temperature cycling. This ensures closures maintain integrity during transport, storage, and consumer use.

Torque Control and Consumer Usability

Torque is a balancing act. Excessive torque leads to poor user experience and damaged threads. Insufficient torque compromises sealing integrity and safety. t3 engineers closures to achieve optimal torque values that satisfy both production requirements and consumer expectations.

Torque performance is evaluated across:

• Factory application torque
• Opening torque after storage
• Resealing torque after consumer use

This ensures closures remain easy to open, intuitive to reseal, and consistent across batches. Predictable torque performance reduces customer complaints, product returns, and brand damage.

Compatibility With High-Speed Filling Lines

Closures must perform reliably at speed. On automated filling lines, closures are applied at high volumes where feeding, alignment, and placement must be flawless. t3 designs closures with:

• Stable feeding geometry
• Consistent centre-of-gravity
• Accurate thread starts
• Reliable engagement under rapid application

This reduces line stoppages, misfeeds, and capping errors, improving overall production efficiency and throughput.

Environmental Stress and Long-Term Performance

Closures are exposed to real-world stresses that extend far beyond the factory floor. These include:

• Vibration during transport
• Pressure changes due to altitude or temperature
• Inversion and stacking loads
• Repeated opening and closing by consumers

t3 validates closure performance through extensive testing that simulates these conditions. Long-term durability testing ensures closures do not fatigue, deform, or lose sealing integrity over time.

Why Closure Engineering Protects Brand Reputation

When closures fail, the consequences are immediate and visible. Leaks damage labels, contaminate products, and erode consumer trust. Closure engineering is therefore not a technical detail, but a brand safeguard.

By treating closures as engineered systems rather than accessories, t3 helps brands deliver consistent performance, protect their reputation, and reduce risk across the supply chain.

t3 Plastic Packaging, engineered sealing systems, not just caps.

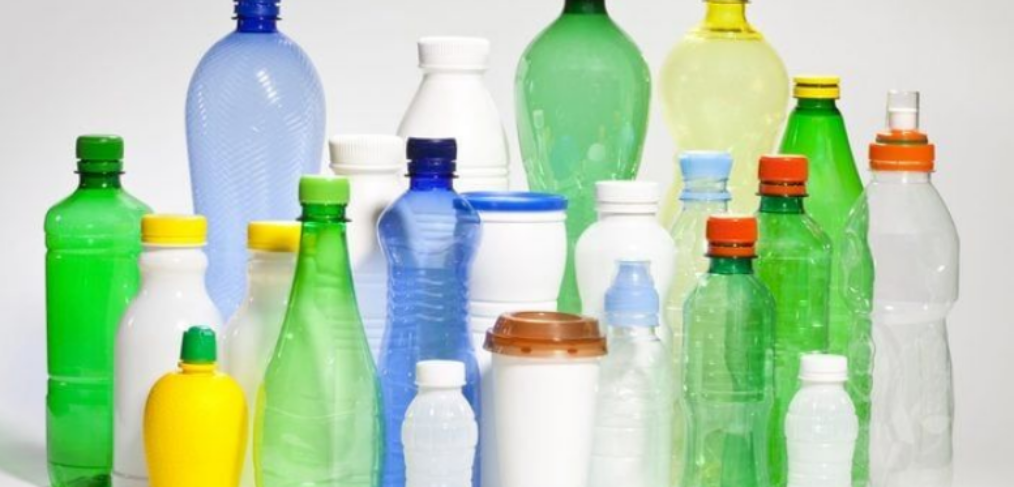

Ecommerce has changed how products travel. Instead of moving only on pallets between warehouses and retail shelves, goods are now shipped as individual parcels through courier networks, distribution hubs and delivery vehicles. That shift has created new demands on packaging, and new expectations from consumers.

Rigid plastic packaging must now be strong enough to survive the journey and attractive enough to impress the customer at unboxing. At t3 plastic packaging, we work with brands to design bottles, jars and containers that are truly ecommerce-ready.

How Ecommerce Changes the Packaging Environment

Traditional retail packaging was designed for:

• Palletised loads

• Controlled store environments

• Limited direct handling by the end-user


Ecommerce adds new stresses:

• More touchpoints and handovers between facilities

• Automated sorting systems and conveyor drops

• Compressed shipping, where parcels are tightly packed and stacked

• Exposure to temperature fluctuations in transit and at delivery points


If packaging is not designed with this in mind, the risk of leaks, dents, damage and negative customer experiences increases.

Structural Strength: Rigid Design for a Rougher Journey

Rigid plastic packaging for ecommerce must absorb impact and compressive forces without failing.

t3 focuses on:

• Optimised wall thickness to balance strength and material use

• Reinforced shoulders and bases to resist denting and paneling

• Structural ribbing and shaping that add rigidity without unnecessary weight

• Consistent geometry so packs do not distort under stacking loads


These structural details help bottles and containers hold their shape, even when handled roughly during shipping.

Leak Prevention and Closure Integrity

Nothing ruins an unboxing experience faster than a product that has leaked in transit. For ecommerce, leak prevention is non-negotiable.

t3 supports ecommerce-ready design through:

• Accurate neck and thread finishes to ensure secure closure fit

• Well-matched closures with suitable liners or seals

• Tamper-evident bands that also provide extra security

• Optional induction seal compatibility where brands require additional leak protection


By treating the container and closure as a single system, t3 helps reduce in-transit failures and product returns.

Pack Geometry for Parcels, Not Just Pallets

Ecommerce packaging needs to make efficient use of parcel space while remaining stable and easy to handle.

t3 considers:

• Compact, space-efficient shapes that fit into common box formats

• Stackable profiles for warehouse and micro-fulfilment storage

• Smooth edges and controlled protrusions to reduce snagging on conveyors or packing materials

• Clear label areas that remain visible even when multiple items are packed together


The aim is to create rigid packaging that works for fulfilment teams and still looks good for the consumer.

Unboxing and On-Screen Appeal

Ecommerce has also made packaging more visible on screens. Customers often see a 3D render or photograph online before they ever hold the product.

t3 designs rigid packaging that:

• Photographs well, with clean lines and clear branding zones

• Looks balanced and premium when held in hand or featured in marketing content

• Supports consistent label placement for a uniform appearance across SKUs

• Feels reassuringly solid when customers first pick it up


This alignment between on-screen promise and in-hand reality builds trust and strengthens brand perception.

Compatibility with Secondary and Protective Packaging

Rigid plastic containers rarely travel alone in ecommerce. They share space with void fill, cartons and secondary packaging.

t3 helps brands coordinate primary packaging with secondary protection by:

• Advising on fit with standard carton sizes and internal dividers

• Designing bottles and jars that are less prone to scuffing or abrasion

• Considering how multiple units nest or align within a pack

• Supporting discussions with fulfilment partners on practical packing methods


Thoughtful primary packaging simplifies secondary packaging decisions and can reduce overall materials and logistics costs.

Sustainability and Ecommerce: Doing More With Less

Ecommerce packaging can generate additional materials, boxes, fillers and labels. That makes the sustainability profile of primary packaging even more important.

t3 supports ecommerce sustainability goals through:

• Lightweighting rigid containers without compromising strength

• Using recyclable polymers such as PET, HDPE and PP

• Designing packs that are easy for consumers to rinse and recycle after use

• Supporting single-material solutions where possible to simplify recycling


This helps brands reduce environmental impact while still delivering safe, robust packaging for online channels.

Conclusion: Packaging Ready for Clicks, Carts and Couriers

Ecommerce has raised the bar for what rigid plastic packaging must do. It has to protect products through complex courier journeys, arrive in perfect condition, and still deliver a strong brand impression when the customer opens the box.

Through smart structural design, material expertise and an understanding of fulfilment realities, t3 plastic packaging creates ecommerce-ready bottles, jars and closures that are built for both performance and presentation. Whether you sell through retailers, distributors or direct-to-consumer platforms, your packaging can be ready for every route to the customer.

Automotive and industrial fluids work in harsh environments. Oils, lubricants, coolants, cleaners and chemicals must perform under pressure, heat and contamination risks. Their packaging needs to do the same.

Rigid plastic bottles and containers play a critical role in protecting these fluids, ensuring they are easy to store, pour and transport, while keeping users safe and brands compliant. At t3 plastic packaging, we design rigid packaging solutions that are engineered for demanding industrial and automotive conditions.

This article explores how material choice, design and manufacturing quality come together to deliver packaging that performs wherever your fluids are used.

Understanding the Demands of Automotive and Industrial Fluids

Unlike everyday consumer products, automotive and industrial fluids come with specific challenges:

• They may be corrosive, solvent-based or highly viscous

• Temperature and storage conditions can vary widely

• Containers must withstand stacking, handling and transport vibration

• Accurate dosing and controlled pouring are essential

• Labelling must remain legible in workshops, warehouses and outdoor environments


Rigid plastic packaging must respond to all of these demands while remaining efficient to produce and easy to integrate into filling lines.

Choosing the Right Materials for Harsh Formulations

Material selection is the starting point for safe, reliable industrial packaging.

HDPE: the workhorse for industrial fluids

High-density polyethylene (HDPE) is a preferred material for:

• Engine and hydraulic oils

• Gear and transmission fluids

• Industrial lubricants and cleaners

• Automotive care products such as degreasers and shampoos


HDPE provides strong chemical resistance, impact strength and flexibility in shape, allowing bottles and jerrycans to be tailored to volume and application.

PET for clarity and premium positioning

Where product visibility or branding demands a clear pack, PET can be used for:

• Screenwash and certain automotive care liquids

• Specialist cleaning products

• Premium industrial formulations


PET offers excellent clarity and a smooth surface for high-impact labels and printing, while still maintaining good mechanical performance.

PP for closures and dispensing components

Polypropylene (PP) is often selected for:

• Screw caps and spouts

• Measuring and dosing caps

• Flip-top closures and plug inserts


It delivers good fatigue resistance and stability for closures that will be opened and closed repeatedly in workshop conditions.

Design Features That Improve Handling and Pouring

Industrial users value packaging that is functional first. t3 designs rigid bottles and containers with real-world handling in mind:

• Moulded grips and handles for secure holding with oily or gloved hands

• Angled necks and defined spouts for controlled pouring into narrow openings

• Stable bases to prevent tipping during filling, storage and use

• Clearly marked volume indicators to support accurate dosing and decanting


These practical features help reduce spills, waste and frustration on the job.

Closures, Security and Leak Prevention

Leaks are more than an inconvenience in industrial environments, they can create safety hazards, lead to product loss and damage equipment.

t3 focuses on closure systems that deliver:

• Tight, repeatable sealing through precise neck and thread design

• Tamper-evident options to protect product integrity in retail or wholesale supply chains

• Dosing and measuring caps where accurate mix ratios are required

• Vent options where needed to prevent panel paneling or pressure build-up


By designing bottles and closures as a system, t3 helps ensure that containers stay sealed from production line to point of use.

Optimising Packaging for Filling Lines and Distribution

Automotive and industrial packaging must run efficiently on high-speed lines and withstand long-distance distribution.

t3 supports this through:

• Consistent neck dimensions for automated capping

• Controlled wall thickness for predictable performance and lightweighting

• Shapes that stack securely on pallets and in racking

• Label-friendly surfaces that work with wraparound, front-and-back or sleeve labels


This alignment between design and production reduces downtime, rejects and rework.

Branding and Differentiation in a Competitive Market

Even in the industrial aisle, packaging design matters. Distributors and end users encounter many similar products; recognisable, coherent packaging makes it easier to select your brand.

t3 works with automotive and industrial clients to:

• Develop family ranges with shared shapes across different viscosities or product types

• Use colour, silhouette and closure style to define brand identity

• Ensure ample label space for technical information, safety icons and branding

• Integrate practical features without compromising shelf or catalogue appeal


The result is packaging that feels robust, professional and aligned with your brand promise.

Sustainability Considerations in Industrial and Automotive Packaging

Industrial and automotive products are increasingly expected to align with sustainability goals. Rigid plastic packaging can support this shift when designed correctly:

• Lightweight bottles and containers that use less material per unit

• Established polymers like HDPE and PET that are compatible with recycling streams

• Simple, single-material constructions where possible to support recyclability

• Manufacturing efficiencies that reduce energy and scrap


t3 helps clients meet performance and sustainability requirements without compromising safety or durability.

Conclusion: Packaging Built for Demanding Environments

Automotive and industrial fluids place higher demands on packaging than many other sectors. Bottles and containers must be strong, chemical resistant, easy to handle and consistent from batch to batch.

With a focus on material science, ergonomic design and precision manufacturing, t3 plastic packaging delivers rigid plastic solutions that work as hard as the products inside. From small workshop bottles to bulk industrial containers, t3 helps brands protect their fluids, their users and their reputation.
